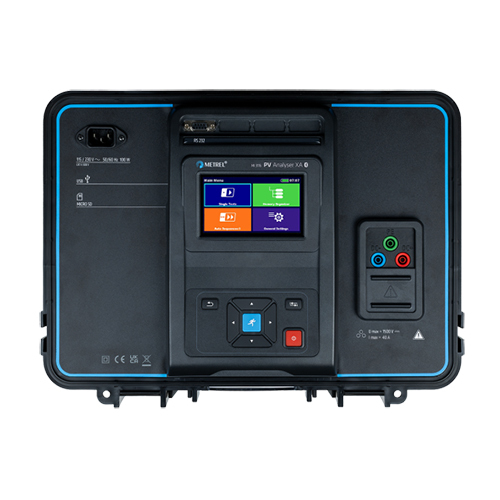

MI 3116 PV Analyser XA

Name: MI 3116 PV Analyser XA
Brand: VOLTERRA TECHNIKS LLP
Price: 1227600.0 INR
Availability: InStock

Price 1227600.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

MI 3116 PV Analyser XA Specification

Automation Grade
Automatic / Manual selection

Features
Auto test, touch screen, memory for results, I/V curve, insulation test, open short test, continuity test

Measuring Range
Upto 999 M Ohm Rankine

Accuracy
Pls refer to datasheet %

Test Range
20-1699VDC, 0.1-39.99ADC

Humidity
0 % RH to 85 % RH (non-condensing)

Display Type
Large color touch TFT display

Temperature
-10 to 85 Newton

Application
Testing, analysis, and troubleshooting of photovoltaic (PV) module strings and installations

Mounting Type
Portable, Carry Case

Frequency
NA Hertz (HZ)

Product Type
Photovoltaic and electrical installation tester

Interface Type
USB, Bluetooth, Wi-Fi (depending on model)

Equipment Type
PV Analyser Tester

Weight
7 Kilograms (kg)

Dimension (L*W*H)
420 x 180 x 330 Millimeter (mm)

Response Time
< 2 s Seconds

Port Size
Standard PV Connector Inputs

Resolution
480 x 272 pixel screen

Power Supply
Built-in rechargeable battery / External Power Adaptor

Operating Voltage
1000 V DC Max Volt (V)

Usage
PV module and string diagnostic testing

Machine Weight
7 Kilograms (kg)

Control Mode
Touch Screen / Button Control

Graphical Analysis
Displays and stores I-V and P-V curves

Languages
Multilingual interface available

Ingress Protection
IP65 (closed lid)

Calibration
User calibratable; factory calibrated

Transportability
Supplied in robust, portable case with handle

Battery Life
Up to 6 hours of continuous operation

Dimensions
Approx. 315 x 285 x 130 mm

Data Logging
Built-in data logger with timestamping

Memory Storage
Yes, internal memory for test result storage

Output Data
Downloadable via USB or wireless interface

Safety Features
Input protection, warning indicators, robust enclosure

MI 3116 PV Analyser XA Trade Information

Minimum Order Quantity
1 Number

Delivery Time
8 Week

MI 3116 PV Analyser XA About

The MI 3116 PV Analyser XA is an advanced photovoltaic and electrical installation tester designed for maximum efficiency and precision. It combines insulation and I/U measurements of 1500 V PV systems in a single device while ensuring accurate testing of high-efficiency PV modules. A wireless (Wi-Fi) remote unit enables real-time measurement and logging of irradiation and cell temperature, enhancing data collection. The Auto Test function for Category 1 tests streamlines operation, while the innovative correction feature allows users to adjust previously incorrect parameters on completed measurements or entire test groups, ensuring greater accuracy and reliability in PV system diagnostics.
