Solar Charge Controller

• Application
• Other, Solar PV systems

• Color
• White/Black

• Dimension (L*W*H)
• 290 x 130 x 142 mm (approx)

• Efficiency
• >99% Peak Efficiency

• Features
• Advanced digital design, High reliability, PWM and MPPT charging, LED indicators, Extensive electronic protections

• Input Voltage
• 150 VDC (Max)

• Installation Type
• Other, Wall-mounted

• Maintenance Type
• Low maintenance

• Material
• High-grade electronic components

• Max System Voltage
• 48 V

• Max Voltage
• 150 V (Input)

• Operating Temperature
• -40C to +60C

• Output Voltage
• 12-48 V

• Power
• 3200W (Max PV Power)

• Product Type
• Other, Solar Charge Controller

• Size
• Compact heavy-duty

• Switch Mode
• Other, MPPT (Maximum Power Point Tracking)

• Type Of Technology
• Other, MPPT

• Weight
• ~4.2 kg

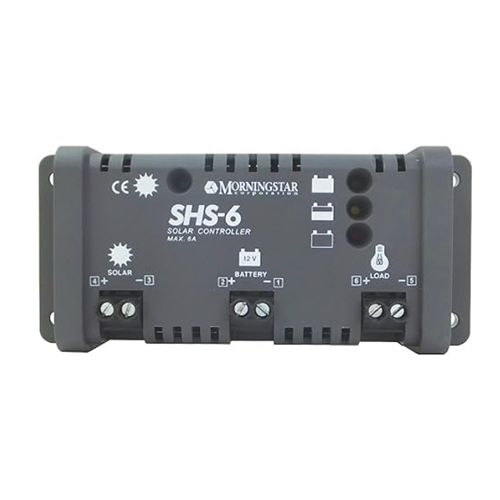

• Application
• Other, Solar home systems, rural electrification, off-grid applications

• Color
• Grey/Black

• Dimension (L*W*H)
• 168 x 96 x 39 mm (approx.)

• Efficiency
• >98%

• Features
• LED status indicators for solar, battery and load, electronic protections, automatic system voltage detection, sealed and flooded battery selectable, compact design

• Input Voltage
• 12V nominal

• Installation Type
• Other, Wall Mount, Panel Mount

• Maintenance Type
• Maintenance-free solid-state

• Material
• High-impact polycarbonate housing

• Max System Voltage
• 30V DC

• Max Voltage
• 15V (load/solar max voltage)

• Operating Temperature
• -25C to +60C

• Output Voltage
• 12V DC

• Power
• 10A rated current

• Product Type
• Other, Solar Charge Controller

• Size
• Compact

• Switch Mode
• Other, PWM (Pulse Width Modulation)

• Type Of Technology
• Other, PWM Technology

• Weight
• Approx. 0.3 kg

• Application
• Other, Solar PV battery charging

• Cable Length
• Depends on installation

• Color
• Black/silver/gray finish

• Dimension (L*W*H)
• 390*220*95 mm

• Efficiency
• Up to 98%

• Features
• Digital meter, heat sink, MPPT technology

• Input Voltage
• Up to 200 V

• Installation Type
• Other, Wall-mounted possible

• Maintenance Type
• Low maintenance

• Material
• Metal and high grade plastic housing

• Max System Voltage
• 48 V

• Max Voltage
• 200 V (as per model name)

• Number of Cells
• N/A (controller, not a module)

• Operating Temperature
• -40C to +60C (estimated)

• Output Voltage
• 12-48 V

• Power
• 2400 W (Max PV Power)

• Product Type
• Other, MPPT Solar Charge Controller

• Size
• Compact

• Switch Mode
• Other, MPPT

• Type Of Technology
• Other, MPPT

• Weight
• Approx. 5 kg (visual estimate)
